SPLICE WRAP U.E. TAPE
(1.5 mil.) (3 mil.)

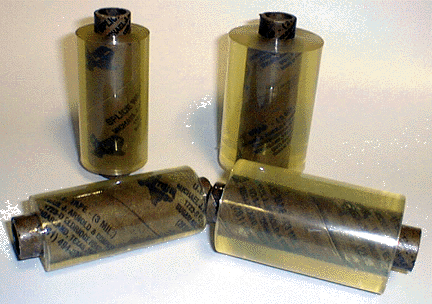

SPLICE WRAP # 50305; Clear elastic vinyl wrap, four inches wide, wrapped on a five inch water-resistant core, 1.5 mil. thick, 160 feet (min.) long, and packed 16 rolls per case (9.6 Lbs.) - 9" x 5 1/16" x 9" - 112/pallet (42"x42") *
U.E TAPE # 50307; Clear elastic vinyl wrap, four inches wide, wrapped on a five inch water-resistant core, 3 mil. thick, 100 feet (min.) long, and packed 12 rolls per case (8.8 Lbs.) - 7 1/2" x 5 1/16" x 9 3/4" - 140/pallet (42"x42")*
Uses: *Protects pulp and pic-insulated pairs *Keeps ready access closures clean and organized *Bundles items together without sticky adhesives *Separates binder groups for easier bundle identification *Pulls down large splice bundles for more compact splices *Used as a pressure medium for urethane encapsulated splices.
Features: * Clear *Durable *Flexible *Light Weight *Self Adhering *Easy To Handle *Tear-Resistant *Moisture-Resistant.
*Other lengths and widths available.
Volume Discounts based on Total List Price of Single Shipment Order:
$500.00>5%, $1,000.00>10%, $2,500.00>15%, $5,000.00>20%, $10,000.00>25%, $25,000>30%, $50,000>35%
Prices effective on all orders received and accepted after 01/01/2024 and subject to our terms and conditions.
STANDARD MODEL SIZES
( CALL FOR INFORMATION ON YOUR UNIQUE REQUIREMENTS )
|
ITEM |
PRODUCT DESCRIPTION |
LIST |
Lbs/ea. |
| 50305R | SPLICE WRAP -1.5mil, 160', 4" |
5.00 |
0.55 |
| 50305 | SPLICE WRAP -1.5mil, 160', 4", 16/cs |
80.00 |
9.60 |
| 50305RB | SPLICE WRAP -1.5mil, 160', 4", 60/cs |
292.95 |
36.00 |
| 50305SS | SPLICE WRAP -1.5mil, 50', 4", /Roll |
2.05 |
0.22 |
| 50305SU | SPLICE WRAP -1.5mil, 100', 4", /Roll |
3.30 |
0.39 |
|
|
|
||
| 50306R | U.E.-TAPE-3mil, 50', 4", /Roll |
3.04 |
0.39 |
| 50306RB | U.E.-TAPE-3mil, 50', 4", 100/cs |
303.22 |
39.00 |
| 50307 | U.E.-TAPE-3mil, 100', 4", 12/cs |
66.12 |
8.80 |
| 50307RB | U.E.-TAPE-3mil, 100', 4", 50/cs |
279.63 |
37.00 |
| 50307R | U.E.-TAPE-3mil, 100', 4", /Roll |
5.61 |
.75 |
Material: (3 mil.) Plasticized Polyvinyl Chloride, Width +- 1/8", Length +- 10% -0,Thickness as listed above +- 10% average of (3) three readings across the flat, (2) two laminated layers of equal thickness. Ultimate Tensile 5000 PSI ASTM MD and ASTM TD. Elongation at Break 450% ASTM MD, 500% ASTM TD. Product name and nominal thickness printed on all standard cores.
Comparative Product Analysis
| Product | Michael J. Arnold | Tyco/Raychem | KGP - ATTSE | Verizon-KMM | 3M |
| 1.5 mil. x 160', 16/cs. |
50305 Splice Wrap |
754174 Tape,UDS,1.5 mil. | 700064926 | 2176 EZ Wrap | |
| 3 mil. x 50', 100/cs. | 50306RB U.E. Tape | 304563 Tape,UDS, 50' | EZ Wrap | ||
| 3 mil. x 100', 12/cs. | 50307 U.E. Tape | 503690 Tape, UDS, 100' | 0000133871-222001091 | 700201290 | 2183 EZ Wrap |
